Timing Pulley / Timing belt, Support unit & Shaft are available for building Reducers

All Items in Stock we ship in 24 Hours    Contact us for quick quotation

XL Pulley catalog no. CN-XL01
Material Aluminum
Clear Anodized
All Pulleys come with two set screw holes  (S) set screw
All measurement are in metric mm, each inch = 25.4 mm

Calculate belt length here Automatically




XL Pulley sets All Available in stock, We combine shipping cost Contact us

Type

Shape

No of Teeth

d

D

P.D.

O.D.

 w1

 w2

s

Price

Buy it Now

XLA14

A

14

6.35

21.00 22.00 21.00 16.00 20

M3


$18.00

Out of stock

XLA16

A

16

6.35


24.00


25.00


24.00

16.00 20

M3


$18.00

Out of stock

XLA20

A

20

6.35

31.38 32.34 31.38 16.00 20

M3

$18.00

XLA22

A

22

6.35

35.07 35.57 35.07 16.00 20

M3

$19.00

XLA24

A 24 6.35 38.30 38.81 38.30 16.00 20 M3 $20.00

XLA26

A 26 6.35 41.53 42.04 41.53 16.00 20 M3 $22.00

XLA28

A

28

6.35


43.60


44.60


43.60

16.00 20 M3
$26.00


XLA40

C 40

6.35/15

38.00 64.68 64.17 20.00 32 M4 $35.00 Out of stock

XLA42

A

42

6.35


63.00


64.00


63.00

16.00 20

M6


$39.00

Out of stock


Available Belt length

In stock XL Timing Belt / Custom length available base on order

Type

Width
mm/Inch

Length
mm/Inch

Price

Buy It Now

Type

Width
mm/Inch

Length
mm/Inch

Price

Buy It Now

BXL116

15/0.59

294.64/12.6

$11.00

Call

BXL198

15/0.59

502.92/19.8

$19.00

Call

BXL126

15/0.59

320.04/12.6

$13.00

Call

BXL212

15/0.59

538.48/21.2

$21.00

Call

BXL142

15/0.59

360.68/14.2

$14.00

Call

BXL228

15/0.59

579.12/22.8

$22.00

Call

BXL156

15/0.59

396.24/15.6

$15.00

Call

BXL270

15/0.59

685.80/27.0

$28.00

Call

BXL160

15/0.59

406.40/16.0

$16.00

Call

BXL514

15/0.59

1305.56/51.4

$48.00

Call

BXL198

15/0.59

502.92/19.8

$19.00

Call

BXL788

15/0.59

2001.52/78.8

$64.00

Call

          BXLOpen

15/0.59

Open Length

$0.85/Inch

Call

Support Unit Download DBSU10 drawing

Type

Bore 1

Bore 2

Length


Price

Buy It Now

DBSU10

10mm

10mm

40mm

$58.00

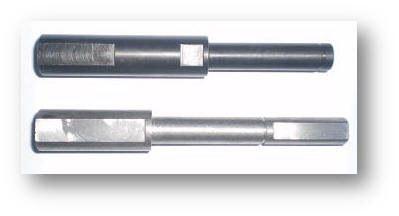

Shaft Download SS1015 Drawing

Type

Front
Diameter
mm/inch

Back
Diameter
mm/inch

Front Length
mm/inch
Back Length
mm/inch
Holding Length
mm/inch
Full Length
mm/inch

Price

Buy It Now

SS101500

15/0.59

10/0393

60/2.362 - 40/1.574 100/3.937

$16.50



SS101015

15/0.59

10/0393

40/1.574 30/1.181 40/1.574 110/4.330

$16.50

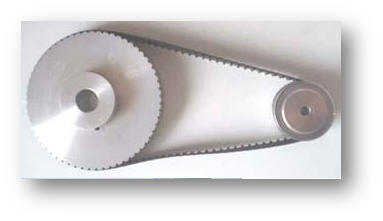

Build your Gear/Reducer/Increaser with XL Pulleys, Timing Belt, Double support unit & Shaft with different Ratio

Shaft Style
Pulley & Timing belt





With SS101500 shaft style
Pulley & pinion go on the front
With SS101015 shaft style
Pinion goes on the front & Pulley goes on the back


Timing belt available with different length please contact us



We ship to Canada, USA, Europe, Australia, France, UK, Italy & International
Please email us Country Name & Contact information to sales@motiontek.ca
we have competitive international shipping rates
