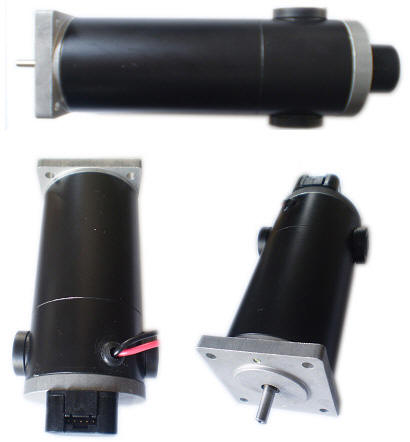

Brushed DC Servo Motor US Digital Encoder
|
|
 |
SM Nema 23/34 Series DC Servo motor are tested
with Viper95 & G320 Gecko
drives Encoder 500 & 1250 CPR,
Click here for
video
 |
 |
|
Viper95 |
G320
|
|
|
|
SM23240E500S
$198 CA
500 CPR, single ended Encoder
Latching connector, cable 4' |
|
|
SM23240E1250D
$233 CA
1250 CPR, differential Encoder
Latching connector, cable 4' |
|
|
SM23240E500SV95
$363 CA
500 CPR, single ended Encoder
Latching connector, cable 4'
Viper95 Driver with connectors |
|
|
SM23240E1250DV95
$398 CA
1250 CPR, differential Encoder
Latching connector, cable 4'
Viper95 Driver with connectors |
|
SM23240
$98 CA
Brushed DC motor only |
|
|
Available in stock |
Combo Set: SM23240 Motor + Encoder + 4'
Encoder Cable Viper 95 Driver &
all required Connectors |
SM23240 Servo Motor Specification
Download Motor SM23240.pdf
Driver V95.pdf
Download tuning software
V95Tuning.cab
Download tuning software
Screen Parameter |
|
Frame Size |
Nema23 |
|
Constant Torque |
50 oz/in – 0.35 N.M |
|
Peak Torque |
240 oz/in – 1.7 N.M |
|
Continuous Current
|
3.4 Amp |
|
Peak Current
|
15 Amp |
|
Maximum Speed
|
6500 RPM ±10 % at
60V |
|
Resistance |
2.739 ohm |
|
Inductance |
2.72 mh |
|
Terminal Voltage |
60 VDC |
|
US Digital
Encoder Optional
Encoder from 32 CPR up to 1250 CPR single end or
differential |
|
|
SM34580E500S
$225 CA
500 CPR, single ended Encoder
Latching connector, cable 4' |
|
|
SM34580E1250D
$260 CA
1250 CPR, differential Encoder
Latching connector, cable 4' |
|
|
SM34580E500SV95
$390 CA
500 CPR, single ended Encoder
Latching connector, cable 4'
Viper95 Driver with connectors |
|
|
SM34580E1250DV95
$425 CA
1250 CPR, differential Encoder
Latching connector, cable 4'
Viper95 Driver with connectors |
|
SM34580
$125 CA
Brushed DC motor only |
|
|
Available in stock |
Combo Set: SM34580 Motor + Encoder + 4'
Encoder Cable Viper 95 Driver &
all required Connectors |
SM34580 Servo Motor Specification
Download Motor SM34580.pdf
Driver V95.pdf
|
|
Frame Size |
Nema34 |
|
Constant Torque |
118 oz/in – 0.8 N.M |
|
Peak Torque |
580 oz/in – 4.09 N.M |
|
Continuous Current
|
7.3 Amp |
|
Peak Current
|
38 Amp |
|
Maximum Speed
|
5800 RPM ±10 % at
90V
3600 RPM ±10 % at 50V |
|
Resistance |
0.993 ohm |
|
Inductance |
1.75 mh |
|
Terminal Voltage |
90 VDC |
|
US Digital
Encoder Optional
Encoder from 32 CPR up to 1250 CPR single end or
differential |
|
|
SM34840E500S
$239 CA
500 CPR, single ended Encoder
Latching connector, cable 4' |
|
|
SM34840E1250D
$274 CA
1250 CPR, differential Encoder
Latching connector, cable 4' |
|
|
SM34840E500SV95
$404 CA
500 CPR, single ended Encoder
Latching connector, cable 4'
Viper95 Driver with connectors |
|
|
SM34840E1250DV95
$439 CA
1250 CPR, differential Encoder
Latching connector, cable 4'
Viper95 Driver with connectors |
|
SM34840
$139 CA
Brushed DC motor only |
|
|
Not
Available in stock
email us to book your order |
Combo Set: SM34840 Motor + Encoder + 4'
Encoder Cable Viper 95 Driver & all
required Connectors |
SM34840 Servo Motor Specification
Download SM34840.pdf
Driver V95.pdf
|
|
Frame Size |
Nema34 |
|
Constant Torque |
170 oz/in – 1.2 N.M |
|
Peak Torque |
840 oz/in – 6.0 N.M |
|
Continuous Current
|
7.8 Amp |
|
Peak Current
|
40 Amp |
|
Maximum Speed
|
4500 RPM ±10 % AT
72V
2750 RPM ±10 % AT 50V |
|
Resistance |
0.983 ohm |
|
Inductance |
1.435 mh |
|
Terminal Voltage |
72 VDC |
|
US Digital
Encoder Optional
Encoder from 32 CPR up to 1250 CPR single end or
differential |
|
|
SM341100E500S
$245 CA
500 CPR, single ended Encoder
Latching connector, cable 4' |
|
|
SM341100E1250D
$280 CA
1250 CPR, differential Encoder
Latching connector, cable 4' |
|
|
SM341100E500SV95
$410 CA
500 CPR, single ended Encoder
Latching connector, cable 4'
Viper95 Driver with connectors |
|
|
SM341100E1250DV95
$445 CA
1250 CPR, differential Encoder
Latching connector, cable 4'
Viper95 Driver with connectors |
|
SM341100
$145 CA
Brushed DC motor only |
|
|
Available in stock |
Combo Set: SM341100 Motor + Encoder + 4'
Encoder Cable Viper 95 Driver & all
required Connectors |
SM341100 Servo Motor Specification
Download SM341100.pdf
Driver V95.pdf |
|
Frame Size |
Nema34 |
|
Constant Torque |
225 oz/in – 1.6 N.M |
|
Peak Torque |
1100 oz/in – 8.0 N.M |
|
Continuous Current
|
6.6 Amp |
|
Peak Current
|
40 Amp |
|
Maximum Speed
|
3100 RPM ±10 % at
90V
1750 RPM ±10 % at 50V |
|
Resistance |
0.408 ohm |
|
Inductance |
3.185 mh |
|
Terminal Voltage |
90 VDC |
|
US Digital
Encoder Optional
Encoder from 32 CPR up to 1250 CPR single end or
differential |
|
|
SM562570
Price $395 CA
|
|
|
Available in stock |
 |
SM562570 DC Servo Motor Specification
Download SM562570.pdf
|
|
Frame Size |
Nema56 |
|
Constant Torque |
528 oz/in – 3.7 N.M |
|
Peak Torque |
2571 oz/in – 18 N.M |
|
Continuous Current
|
11 Amp |
|
Peak Current
|
50 Amp |
|
Maximum Speed
|
1800 RPM ±10 % at
90V |
|
Resistance |
1.474 ohm |
|
Inductance |
0.59 mh |
|
Terminal Voltage |
140 VDC |
|
US Digital
Encoder Optional
Encoder from 32 CPR up to 1250 CPR single end or
differential |
|
|

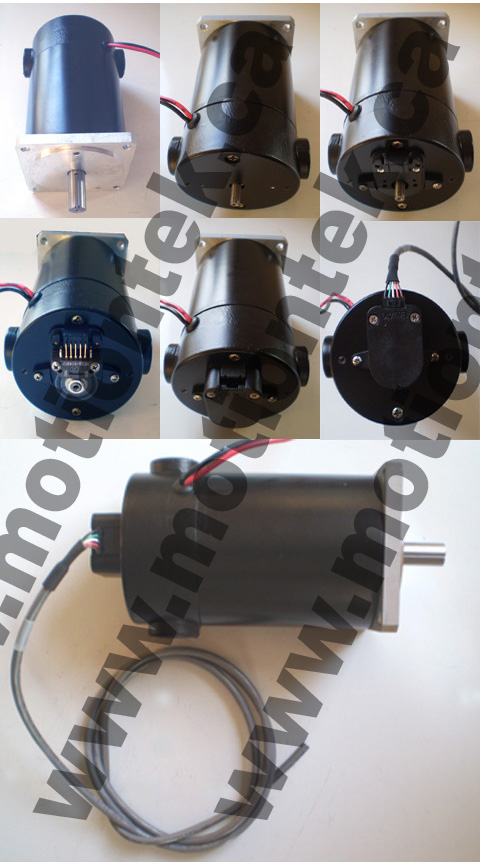

Brushed DC Servo motor with E
code for encoder and V for driver
Encoder Type Optical,
3 Channels, Indexer, 5
Pins Single-Ended, or 9 pins differential 32 ~
1250 CPR
Latching connector 5 pins & latching cable 4' or
1' length
|
|
 |
|
Custom DC motors are available starting from 20 items
or more |
|
We ship to Canada, USA, Europe, Australia,
France, UK, Italy & International
Please email us
Country Name & Contact information to
sales@motiontek.ca
we have competitive
international shipping
rates
|
|
