CNC Router Spindle & Inverter Speed Control

Air Cooling Spindle Wood, Plastic & Light Metal processing

Specifications

Part No	RPM	KW	Input Voltage	Current	Hz	Collets	Weight KG	Price	Buy It Now
SPAC1815	18000	1.5	220/380	6.8/3.8	300	ER20	6	$720	Contact us
SPAC1822	18000	2.2	220/380	10/5.5	300	ER25	8	$920	Contact us
SPAC1835	18000	3.5	220/380	15/8.8	300	ER25	9	$1180	Contact us
SPAC1845	18000	4.5	380	9.5	300	ER32	13	$1520	Contact us
SPAC1860	18000	6.0	380	12.6	300	ER32	15	$1890	Contact us
SPAC1812	18000	12.0	380	26	300	ER32	23	$3790	Contact us

Mechanical Dimension
Part No	L	L1	L2	L3	L4	L5	L6	H	H1
SPAC1815	248.5	20	90	/	30	74.5	82	120	46.5
SPAC1822	285	37	90	/	30	76	82	120	41.5
SPAC1835	327	37	90	/	30	76	82	120	41.5
SPAC1845	328	25	60	60	36	91	103	146	60
SPAC1860	371	40	60	60	36	91	103	146	60
SPAC1812	387	25	60	60	36	94	103

Water Cooling Spindle Wood, Plastic & Light Metal processing

Specifications

Part No	RPM	KW	Input Voltage	Current	Hz	Collets	Weight KG	Price	Buy It Now
SPWC6003	60000	0.3	75	4.5	1000	ER8	1.5	$506	Contact us
SPWC2408A	24000	0.8	220	6.0	400	ER11	3	$462	Contact us
SPWC2415	24000	1.5	220	5.0	400	ER11	4.4	$374	Contact us
SPWC2422	24000	2.2	220	8.0	400	ER16/20	9.6	$528	Contact us
SPWC2430	24000	3.0	220/380	12/7	400	ER20	11	$880	Contact us
SPWC2440	24000	4.0	220/380	17/10	400	ER20	11.6	$968	Contact us

Mechanical Dimension

Part No	L1	L2	L3	D0	D1
SPWC2408A	24000	0.8	220	6.0	400
SPWC2415	24000	1.5	220	5.0	400
SPWC2422	24000	2.2	220	8.0	400
SPWC2430	24000	3.0	220/380	12/7	400
SPWC2440	24000	4.0	220/380	17/10	400

Water Cooling Spindle Metal processing

Specifications

Part No	RPM	KW	Input Voltage	Current	Hz	Collets	Weight KG	Price	Buy It Now
SPWC2412M	24000	1.2	178	4.0	400	ER11	4.4	$847	Contact us
SPWC3615M	36000	1.2	178	4.0	600	ER11	4.4	$968	Contact us
SPWC6022M	60000	1.2	178	4.0	1000	ER11	4.4	$1144	Contact us
SPWC2430M	24000	3.0	220/380	12/7	400	ER20	9	$1078	Contact us

Mechanical Dimension

Part No	L1	L2	L3	D0	D1
SPWC2412M	24000	0.8	220	6.0	400
SPWC3615M	24000	1.5	220	5.0	400
SPWC6022M	24000	2.2	220	8.0	400
SPWC2430M	24000	3.0	220/380	12/7	400

Inverter power range from 0.4 ~ 15 KW, Frequency 0 ~ 3200 Hz, Voltage 220 V ~ 380 V

Features -High output frequency up to 3200 Hz to meet different applications -Panel can be plugged on Inverter or wired to another location -Intuitive display panel easy to read & change operation parameters -manual speed control by potentiometer -Built-in braking unit -Built-in Smart logic controller -Built-in PID controller -Electronic thermal relay Instead of an external motor protection device -Built-in spin pendulum frequency function -Built-in MODBUS communication to set up network -Panel mounting assembly -Operation interface humanization -Multiple protection function to ensure the normal operation of the motor -Optimal voltage space vector PWM -Energy efficient automatic power saving & automatic voltage regulator (AVR) function -More stable device automatic current limiting and stall control functions -Constant torque curve of VF, three square torque curve, VF custom VF curves and VF Curves of load increase, according to the different choices of different VF curves -Cost saving built-in optimization of PID controller

Applications It is used in many industrial applications, this series of product is using modular design, small volume, low temperature rise, low noise, reliable performance. Widely used in CNC Machines industry, chemical industry, textiles, plastic machinery, packaging machinery, beer beverages, environmental protection equipment and energy industry For example: CNC Machines, engraving machine, offset printing machine, edge bending machine, seed processing machines, constant pressure water supply, water treatment machines, chemical processing machines, cement processing machines.

Inverter	Input AC/Phase	Output AC/Phase	Output KW	Output Hz	Buy it Now
SC2201004	230V/1 Phase	230/3 Phase	0.4	up to 3200 Hz	Contact us
SC2201007	230V/1 Phase	230/3 Phase	0.75	up to 3200 Hz	Contact us
SC2201015	230V/1 Phase	230/3 Phase	1.5	up to 3200 Hz	Contact us
SC2201022	230V/1 Phase	230/3 Phase	2.2	up to 3200 Hz	Contact us
SC2203037	230V/3 Phase	230/3 Phase	3.7	up to 3200 Hz	Contact us
SC2203055	380V/3 Phase	380/3 Phase	5.5	up to 3200 Hz	Contact us
SC2203075	380V/3 Phase	380/3 Phase	7.5	up to 3200 Hz	Contact us
SC2203110	380V/3 Phase	380/3 Phase	11.0	up to 3200 Hz	Contact us
SC2203150	380V/3 Phase	380/3 Phase	15.0	up to 3200 Hz	Contact us

AIR COOLING SPINDLE SET & Video
4 HP 18000 RPM, Inverter Speed control 220V 1 phase pre-wired pre-tuned pre-tested
Ready to mount on your CNC Machines Router, Mill, Lathe

SPAC1822 AC Spindle Motor Specification
Cooling type	Air cooling
Spindle power	2200 Watt
Input Voltage	220V 3 phase, Inverter 1 phase 220V
Max Current at 220V 1 phase supply	11 Amp
Speed	5000 ~ 18000 RPM at 300 Hz
Collets type	ER25
Mounting Type	4 screws in the back
Used for cutting	Plastic, wood, light metal etc..

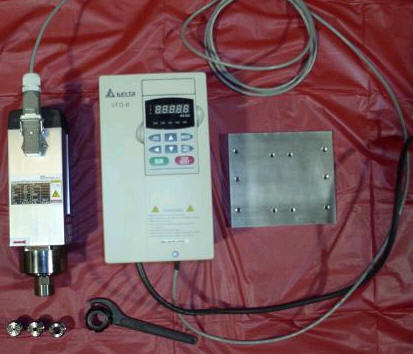

Each set includes

1pc SPAC1822 CNC Spindle motor 3 HP
1pc Delta Inverter 220V , 1 phase support up to 4HP spindle, cULus compliance
1pc mounting plate ( it can be machined upon your specification drawing required)
1pc 10 feet shielded cable to power spindle from inverter
1pc 3 feet cable to power inverter plug 220V 20 Amp North American standard
1pc locking nut for collets
1pc wrench for tiding nut
3pc collets 1/4" & 3/8" & 1/2" tool shank

CLICK ON THE SCREEN BELOW TO WATCH PREWIRED SPINDLE WITH SPEED CONTROLLER
